Potter PAD300-6DB 6-inch Detector Base

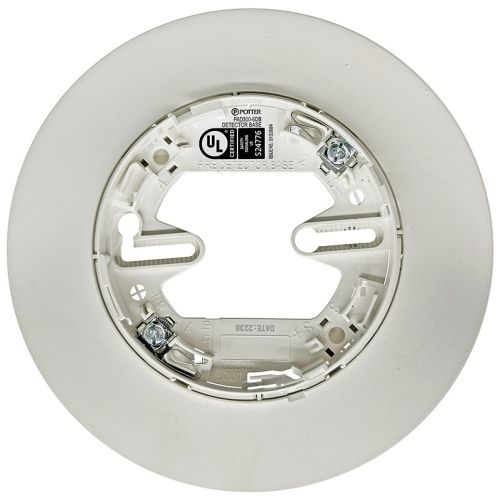

The Potter PAD300-6DB is a 6-inch low-profile detector base for Potter PAD300 series addressable detectors, used to mount the detector head and provide SLC wiring connection points. It includes duplicate in-and-out SLC terminals, polarity markings, a detector locking tab, and a trim plate cover for recessed box applications. Key Specifications: Type: 6-inch detector base Core Function(s): Mounts compatible PAD300 detectors and provides SLC wiring terminals Loop/Protocol: Potter PAD300 series addressable detector SLC wiring Wire Range: 22 to 12 AWG Mounting: Single gang, double gang, 3-1/2 inch octagon, 4 inch octagon, 4 inch square with plaster ring, 50 mm, 60 mm, and 70 mm boxes Locking Feature: Breakaway locking tab helps prevent unauthorized detector removal Dimensions: 6.3 inch diameter; 0.76 inch height Compatible Detectors & Devices: PAD300-PD - Photoelectric smoke detector PAD300-HD - Rate-of-rise and fixed-temperature heat detector System Compatibility: Potter PAD300 series detectors on Potter fire alarm control panels using Potter Addressable Device (PAD) protocol Alternate Part Numbers: Potter Stock No. 3992782
