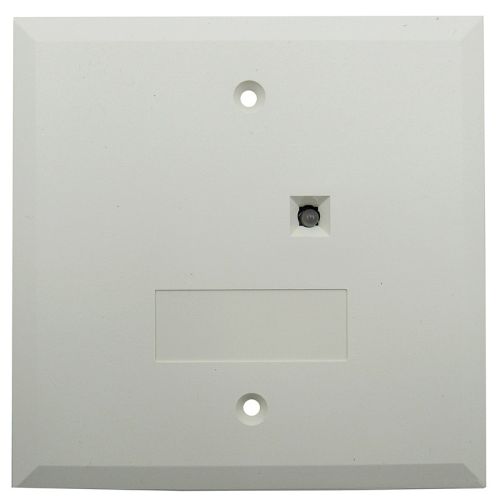

Siemens HTRI-R Intelligent Single Interface Module w/ Relay
$275.00
Siemens HTRI-R Intelligent Single Interface Module w/ Relay is designed to provide the means of interfacing direct shorting devices to the FireFinder XLS and FS-250 Fire Alarm Control Panel loop circuit.
Fully compatible on the same FireFinder XLS and FS-250 circuits with all intelligent H-Series detectors, HMS Series addressable manual stations, or any other addressable intelligent modules, such as Model HZM or Model HCP.
RELAY RATINGS:
Resistive
— 4A, 125 VAC
— 4A, 30 VDC
Inductive
— 3.5A, 120 VAC (0.6P.F.)
— 3.0A, 30 VDC (0.6P.F.)
— 2.0A, 120 VAC (0.4P.F.)
— 2.0A, 120 VAC (0.35P.F.)
— 2.0A, 30 VDC (0.35P.F.)
Part Number 500-033300
