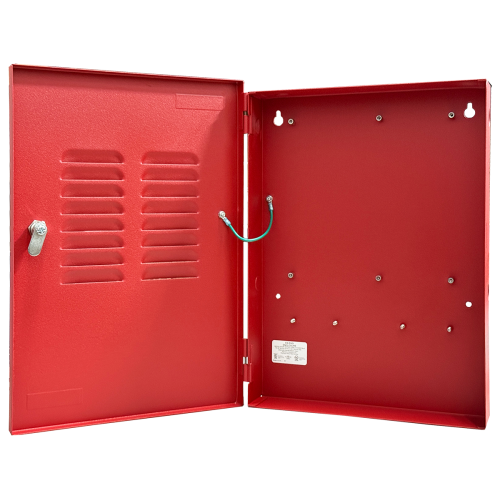

Siemens PAD-3R Auxiliary Power Supply in Red Cabinet

The Siemens PAD-3R is a distributed power supply and notification-appliance circuit (NAC) expander housed in a red cabinet. It delivers up to 6 A at 24 V DC across four power-limited NACs that can be configured as four Class B, two Class A, or a mixed Class A/B layout. Each circuit supports 3 A of load, and an additional 3 A auxiliary output is available for door holders or other 24 V devices. Microprocessor control provides ground-fault detection, battery supervision, and selectable strobe synchronization. A built-in charger supports up to 15 Ah batteries, with space in the cabinet for a 7 Ah set. Local LED indicators and a Form C trouble relay simplify status monitoring. Programming Options: Each PAD-3 NAC extender input can be set for steady, ANSI-Temporal, or synchronized strobe operation. You can also program one input to silence horn outputs on Siemens AS-, NS-, or ZH-series horn and horn-strobe devices while leaving the strobes active for visual alerting. Model Variants: PAD-3 – Black cabinet PAD-3R – Red cabinet Key Specifications: Type: NAC power expander / distributed power supply NAC Circuits: 4 power-limited (4 × Class B or 2 × Class A), 3 A per circuit, 6 A total Auxiliary Output: 1 × 24 V DC, 3 A (counts toward 6 A total) Trigger Inputs: 2 supervised Class B or 2 Class A inputs (9 – 32 V DC) Strobe Sync & Coding: Steady, ANSI-Temporal, or synchronized strobe Primary Power: 120 VAC, 2.5 A maximum Battery Charging: Up to 15 Ah (7 Ah fit inside cabinet) Trouble Relay: Form C contact, 2.5 A @ 30 V DC / 250 V AC Operating Environment: 32 – 120 °F (0 – 49 °C), up to 93 % RH non-condensing Compatible Modules & Accessories: PAD-3-MB – Main board replacement EN-PAD – Black spare cabinet EN-PADR – Red spare cabinet PAD-3-UK – Battery-bracket upgrade kit S3AP – Adapter plate for mounting multiple PAD-3 units in System 3 cabinets
