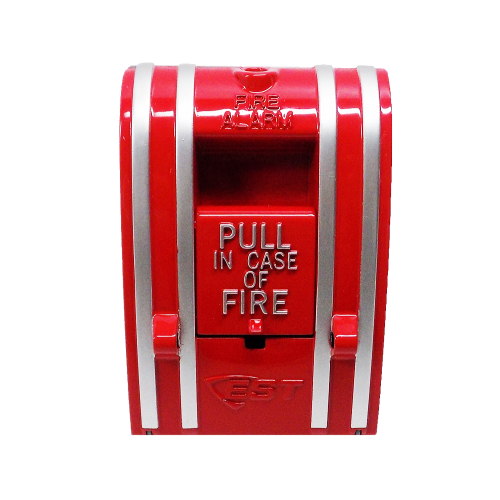

Edwards EST SIGA-270 Single-action Pull Station

The Edwards EST SIGA-270 is an intelligent single-action manual pull station for Signature Series systems. It has a die-cast teardrop body with a front break-glass rod, green polling and red alarm LEDs, electronic soft-addressing, and it mounts to a standard 2.5-inch-deep 1-gang box. Model Variants: SIGA-270 – Single-action, one-stage SIGA-270P – Single-action, two-stage presignal SIGA-278 – Double-action, one-stage Key Specifications: Type: Intelligent addressable single-action manual pull station (Signature Series) Operating Voltage: 15.2 to 19.95 VDC Addressing: Electronic soft-addressing with unique serial number on the Signature loop Indicators: Green LED polls, red LED indicates alarm Mounting: Fits North American 2.5-inch-deep 1-gang boxes Construction: Die-cast zinc with red epoxy finish and aluminum markings Accessories: 270-GLR – Replacement glass rods for SIGA-270 276B-RSB – Red surface-mount box for SIGA pull stations Compatibility: Signature Series SLC only; use with the Edwards Signature Loop Controller.
