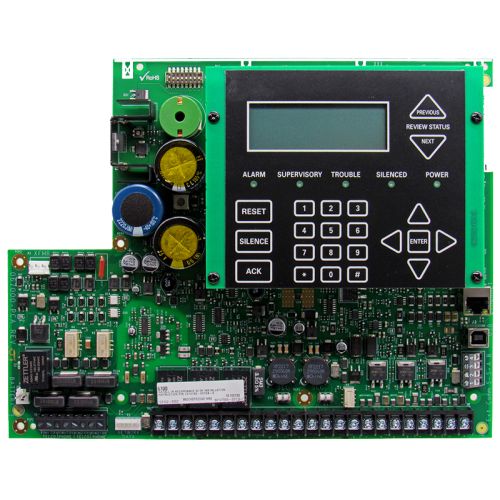

Silent Knight 6700 (Intelligent FACP) Replacement Board

The Silent Knight 6700 Replacement Board (Refurbished) is the main control board for the 6700 intelligent addressable fire alarm control panel. It provides one on-board SLC for up to 100 addressable points (configured for either SK or SD protocol), a built-in USB programming port, two programmable Flexput circuits that can serve as NAC or auxiliary power, SBUS expansion for peripherals, and optional panel networking using the SK-NIC. This listing is for the replacement main control board only. Key Specifications: Type: Intelligent addressable FACP main control board SLC Capacity: Up to 100 addressable points (select SK or SD protocol per system) Panel Networking: Link up to 17 panels via SK-NIC for single-point access Zones & Groups: 125 software zones and 125 output groups Programming & Ports: Built-in USB for quick panel programming; SBUS for accessories NACs / Aux Power: Two programmable circuits; each can be set as a NAC or as auxiliary power Compatible Modules & Accessories: 6860 – 4×40 LCD remote annunciator 5860 / 5860R – 4×20 LCD remote annunciators 5880 – LED I/O module 5883 – 10-relay interface 5824 – Serial/parallel printer interface 5496 – 6 A NAC power expander 5895XL – 6 A distributed power module SK-NIC – Network Interface Card Compatible Detectors & Devices: SK-PHOTO-W – Photoelectric smoke SK-PHOTO-T-W – Photoelectric + heat SK-HEAT-W – Fixed-temperature heat SK-HEAT-ROR-W – Rate-of-rise heat SWIFT wireless devices are supported when using SK protocol. Also compatible with SD-series (Hochiki protocol) addressable detectors and modules when the panel is programmed for SD devices.
