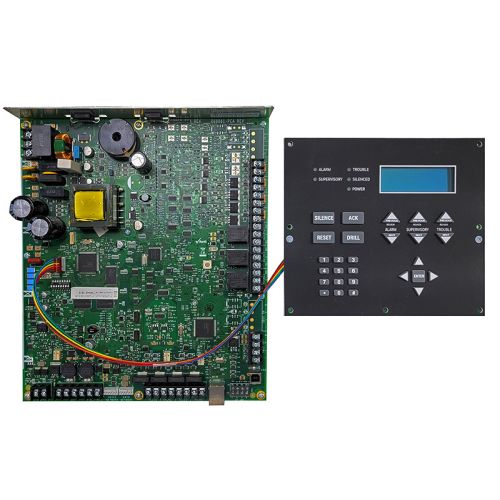

Silent Knight 6808 (Intelligent FACP) Replacement Board with Keypad

The 6808 (Refurbished) Replacement Board with Keypad is the main control board and front keypad/LCD assembly for the Silent Knight 6808 intelligent addressable fire alarm control panel. It retains the panel’s built-in dual-path communicator, one on-board SLC for addressable devices, four Flexput circuits, and the supervised 4-line LCD/keypad. NOTE: The Silent Knight 6808 is a direct replacement for the 5808. Key Specifications: Type: Intelligent addressable FACP main control board with 4-line LCD keypad SLC Capacity: 198 SK addresses (99 detectors + 99 modules) or 127 SD devices (one on-board SLC) I/O & Synchronization: Four Flexput circuits (3 A max per circuit; 6 A total); selectable sync for Amseco, System Sensor, Wheelock, and Gentex appliances Communications: Built-in DACT supporting IP and POTS reporting; optional cellular Ports: Built-in USB for PC connection; RS-485 SBUS for accessories System Design Aids: JumpStart auto-setup; 250 software zones and 250 output groups; supports up to 20 SBUS devices Networking: Link up to 17 panels over copper or fiber for single-point communications Power Supply / Charging: 6 A total across Flexput outputs; battery charging capacity 17–55 Ah; cabinet holds two 18 Ah batteries Primary Power: 120 VAC, 60 Hz, 3.3 A Compatible Modules & Accessories: 5860 – LCD remote annunciator (gray) 5860R – LCD remote annunciator (red) 6860 – 4×40 LCD remote annunciator (red) 6855 – LCD remote annunciator (red) 5880 – LED I/O module 5883 – 10-relay interface board 5824 – Serial/parallel printer interface 5895XL – 6 A auxiliary power module with Flexput 5496 – 6 A NAC power expander Compatible Detectors & Devices: SK-PHOTO-W – Photoelectric smoke SK-PHOTO-T-W – Photoelectric + heat SK-HEAT-W – Fixed-temperature heat SK-HEAT-ROR-W – Rate-of-rise heat Also compatible with SD-series (Hochiki protocol) addressable detectors and modules when the panel is configured for SD devices. SK and SD cannot be mixed on the same system.
