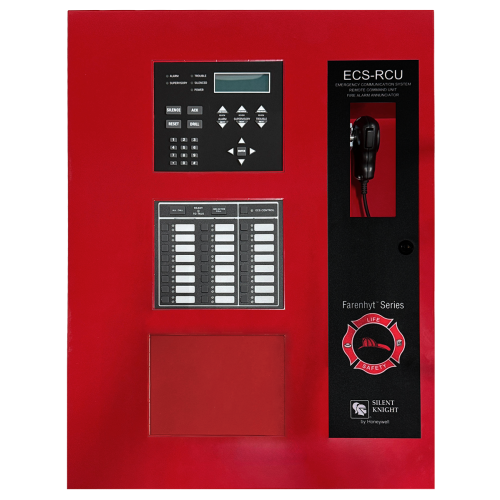

Silent Knight ECS-RCU (Supervised Remote Command Unit w/ Microphone)

The Silent Knight ECS-RCU is a supervised remote command unit that combines a live paging microphone and full-system annunciator for ECS-Series emergency communication systems. It functions as a Local Operator Console (LOC) and includes the ECS-RVM remote voice module with a supervised microphone for live broadcasts. After the main panel, up to seven ECS-RCU or ECS-RPU units can be added per system. The RCU supports up to 64 mappable speaker circuits using combinations of distributed amplifiers and audio expanders, with 40 programmable group buttons plus All Call and Non-Active Call selection. A six-conductor hookup uses two wires for the voice bus and four for SBUS. Surface or flush mounting is supported. Key Specifications: Type: Supervised remote command unit with microphone (LOC) Compatibility: Works with IFP-100ECS and IFP-1000ECS voice-integration panels; up to seven RCU/RPU consoles per system Audio Routing: Up to 64 mapped speaker circuits using ECS-50W, ECS-125W, and ECS-CE4; 40 group buttons plus All Call and Non-Active Call Connections: Six-conductor wiring (2 voice bus, 4 SBUS) Electrical: Standby 100 mA; Alarm 150 mA Compatible Panels & Components: IFP-100ECS – Fire alarm control panel with voice integration IFP-1000ECS – Fire alarm control panel with voice integration ECS-50W – 50 W distributed amplifier ECS-125W – 125 W distributed amplifier ECS-CE4 – Four-circuit audio expander for amplifiers ECS-RPU – Remote paging unit, alternate console that counts toward the seven total 5880 – LED I/O module providing supervised trigger inputs for ECS control Accessories: ECS-SW24 – 24-switch expander for additional zone/group selection VIP-TR – Trim ring for flush mounting ECS-RVM – Remote voice module (included with ECS-RCU)
