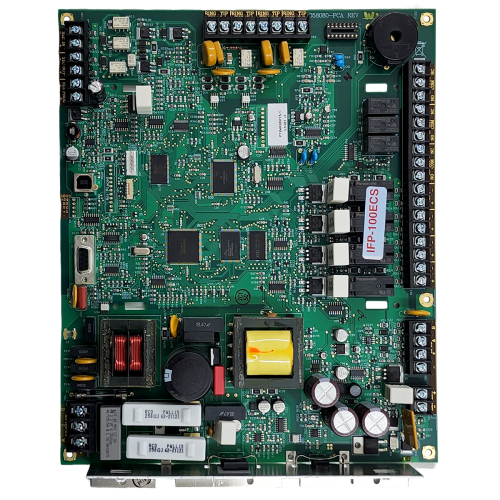

Silent Knight Farenhyt IFP-100ECSBD Replacement Board

This is the Replacement Board only for the Silent Knight Farenhyt IFP-100ECS. The Silent Knight IFP-100ECS is an intelligent fire alarm control panel combined with an Emergency Communication System. When the ECS features are enabled, they are integrated with the fire alarm and voice evacuation functions of the control panel. Primary AC: 120 VAC @ 60 Hz, 2.5A or 240 VAC @ 50 Hz, 1.5A max. The IFP-100ECS has four notification appliance circuits that can be programmed for notification outputs or auxiliary power. The FACP also has a built-in, dual-line digital fire communicator, Form C trouble relay, and two programmable Form C relays. The IFP-100ECS supports a variety of devices, including RA-100 or RA-1000 remote annunciators, 5824 serial/parallel printer interface module (for printing system reports), 5496 or RPS-1000 intelligent power modules, and IDP or SD devices. The IFP-100ECS system is scalable from 50 to 1000 watts using a distributed amplification scheme to provide the power to the appropriate areas for evacuation coverage. COMPATIBLE ECS COMPONENTS: • ECS-50W or VIP-50 - 50 watt amplifier • ECS-125W or VIP-125 - 125 watt amplifier • ECS-DUAL50W - 50/100 watt amplifier • ECS-RVM - remote voice microphone • ECS-SW24 - 24 switch expander • ECS-VCM - voice control module (included)
