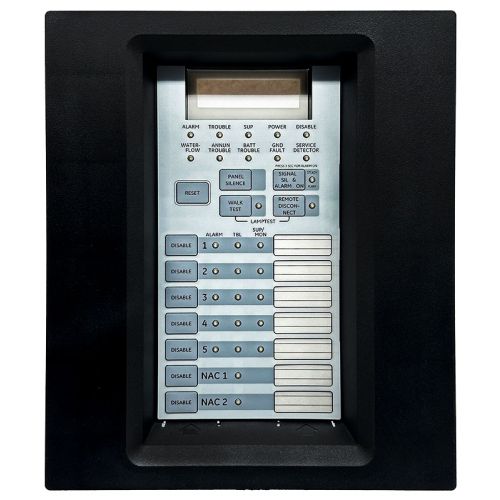

Edwards EST F-5ELEC Main Circuit Board for FSP/FX (5-Zone FACP)

The F-5ELEC Main Circuit Board for FSP/FX (5-Zone FACP) is the factory replacement electronics assembly for Edwards EST FireShield Plus and Kidde FX 5-zone conventional control panels. It restores full system functionality in compatible enclosures, including support for 5 Class B IDCs (or 2 Class A when pairs are converted), two NACs with Genesis synchronization and audible silence, 0.5 A of auxiliary 24 V DC, and optional communicator support for off-premises reporting and PC programming. Compatible Control Panels: Edwards EST FireShield Plus: FSP502G, FSP502GD, FSP502R, FSP502RD Kidde FX Series: FX-5R, FX-5RD Key Specifications: Type: Replacement main control board for 5-zone FireShield Plus / Kidde FX conventional FACPs Zone Capacity: 5 Class B or 2 Class A IDCs NAC Circuits: 2 Class B or 1 Class A, 2.0 A per circuit, 3.5 A total Power: 24 V DC system supply rated at 4.25 A System Output: 3.5 A total for NAC and auxiliary loads Battery Support: Up to two 24 Ah sealed lead-acid batteries, 10 Ah fit in cabinet Dialer/Communicator: Supports optional F-DACT (not included) Compatible Modules & Accessories: Remote Annunciators: FSRSI, FSRZI-A, FSRZI-SA Remote Relay Module: FSRRM24 Universal Input Module: FSUIM City-Tie Module – CTM Reverse Polarity Module: RPM Semi-Flush Trim Ring – F-TRIM35 Multi-Function Cabinet – MFC-A Compatible Detectors & Devices: Listed for use with Edwards 2M, EC, 6200, 400, 500, and 700 Series detectors; other conventional units may be compatible.
