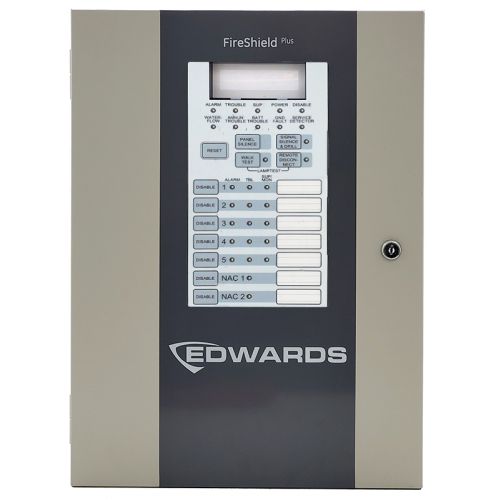

Edwards EST FSP502G FireShield Plus (5-Zone FACP)

The Edwards FSP502G is a FireShield Plus conventional fire alarm control panel that supports up to 5 Class B initiating-device circuits (IDCs) or 2 Class A IDCs when circuit pairs are converted. The panel provides two Class B notification appliance circuits (NACs) rated at 2.0 A each for a 3.5 A system total and can be reconfigured as one Class A NAC. A 4.25 A power supply delivers system power plus 0.5 A of auxiliary 24 V DC, and the panel supports Genesis synchronization and audible silence when used with Genesis devices. An optional integrated dialer enables off-premises reporting and PC programming. Model Variants: FSP502G = Gray cabinet, no communicator FSP502GD = Gray cabinet, factory-installed DACT communicator FSP502R = Red cabinet, no communicator FSP502RD = Red cabinet, factory-installed DACT communicator Key Specifications: Type: Conventional FACP Zone Capacity: 5 Class B or 2 Class A IDCs NAC Circuits: 2 Class B or 1 Class A, 2.0 A per circuit, 3.5 A total Power: 120 VAC input, 24 V DC 4.25 A supply System Output: 3.5 A total NAC/Aux Battery Support: Up to two 24 Ah sealed lead-acid batteries, 10 Ah fit in cabinet Dialer/Communicator: Optional F-DACT communicator (Not Included) Compatible Modules & Accessories: Remote Annunciators: FSRSI, FSRZI-A, FSRZI-SA Remote Relay Module: FSRRM24 Universal Input Module: FSUIM City-Tie Module – CTM Reverse Polarity Module: RPM Semi-Flush Trim Ring – F-TRIM35 Multi-Function Cabinet – MFC-A Compatible Detectors & Devices: Listed for use with Edwards 2M, EC, 6200, 400, 500, and 700 Series detectors and other conventional units may be compatible.
