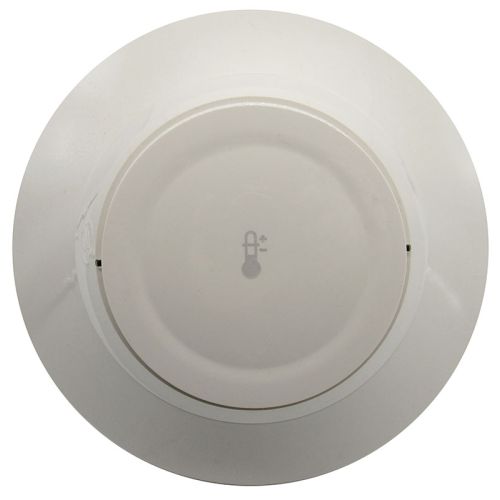

Fire-Lite H365R-IV Rate-of-Rise Heat Detector (Ivory)

The Fire-Lite H365R-IV is an intelligent addressable plug-in thermal detector with rate-of-rise heat detection (15°F / 8.3°C per minute) for Fire-Lite addressable fire alarm control panels. It features rotary decimal addressing for point ID location, two LEDs for local indication, and includes the B300-6-IV flanged detector base. This ivory “-IV” service model supports both LiteSpeed and CLIP protocol. Key Specifications: Type: Intelligent addressable rate-of-rise heat detector Core Function(s): Addressable rate-of-rise heat detection using thermistor technology (15°F/min) Loop/Protocol: Fire-Lite SLC; LiteSpeed and CLIP Power: 15 to 32 VDC peak from SLC; 200 μA max avg standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”) Indicators/UI: Two LEDs; LEDs blink red in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display Operating Range: -4°F to 100°F (-20°C to 38°C) Humidity Range: 10% to 93% RH, non-condensing Compatible Bases & Accessories: B300-6-IV – Ivory 6-inch standard flanged low profile mounting base B501-IV – Ivory 4-inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base B224BI-IV – Ivory isolator detector base B224RB-IV – Ivory relay detector base RA100Z – Remote LED annunciator, 3-32 VDC. For use with B501 and B300-6. TR300-IV – Ivory trim ring System Compatibility: Works with Fire-Lite intelligent addressable fire alarm control panels that support LiteSpeed and CLIP protocol on the SLC loop.
