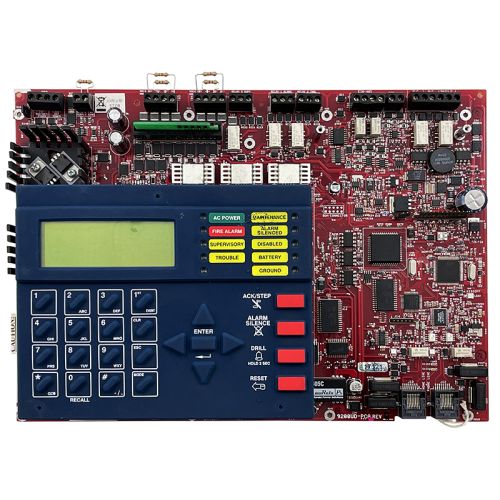

Fire-Lite MS-9200UD (Intelligent FACP + DACT) Replacement Board

The Fire-Lite MS-9200UD Replacement Board 2 has a Built-in Digital Alarm Communicator/Transmitter; Single Loop; 198 addressable device capacity (99 detectors and 99 control/relay/monitor modules); 99 software zones; On board NACs (Notification Appliance Circuits) which can be configured as four Style Y (Class B) or two Style Z (Class A) circuits. Boards use a Class A/B selector card which is mounted on the board COMPATIBLE DEVICES and ACCESSORIES: — CP350, CP355: addressable Ionization Smoke Detector — SD350(T), SD355(T), AD355: addressable Photo Smoke Detector (T= with Thermal Sensor) — H350(R), H355(R), H355HT: Fast Response Heat Detector (R=Rate-of-Rise option, HT=High Temperature 190F) — D350P(R): addressable Photo Duct Detector (R=alarm relay option) — B501BH & B501BHT Sounder Base — B224RB Relay Base — B224BI Isolator Base — MMF-300: Monitor Module — MMF-300-10: Monitor Module (10 Input Class B or 5 Input Class A) — MDF-300: Dual Monitor Module (uses two consecutive SLC addresses) — MMF-301: Miniature Monitor Module — MMF-302: 2-wire Detector Module — MMF-302-6: 2-wire Detector Module (6 Input Class B or 3 Input Class A) — CMF-300: Control Module — CMF-300-6: Control Module (6 Output Class B or 3 Output Class A) — CRF-300: Relay Module — CRF-300-6: Relay Module (6 Form-C relays) — BG-12LX: Manual Pull Station — I300: Isolator ModuleProduct Description Specifications — CP300: addressable Ionization Smoke Detector — SD300(T): addressable Photoelectric Smoke Detector (T= Thermal Sensor) — C304: Control Module — M300: Monitor Module — M301: Miniature Monitor Module — M302: 2-wire Detector Module — BG-10LX: Manual Pull Station — Optional 4XTMF module (conventional reverse polarity/city box transmitter) COMPATIBLE ANNUNCIATORS: — ACM Series-LED Zone Annunciators — LDM Graphic Annunciator Series — LCD-80F Liquid Crystal Display point annunciator — ACM-8RF Relay Module
