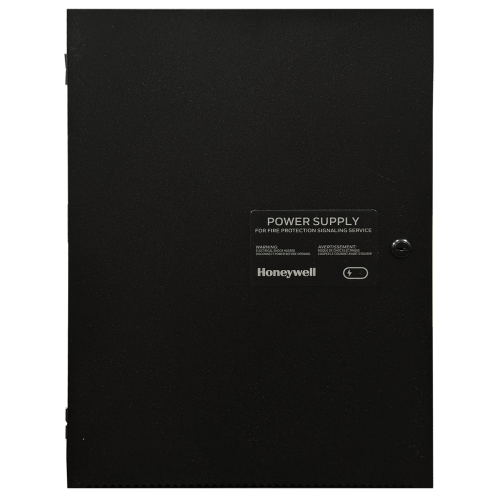

Honeywell HPF-PS6B Power Supply in Black Cabinet

The Honeywell HPF-PS6B is a 6 amp remote power supply and notification-appliance-circuit (NAC) expander housed in a black cabinet. It delivers regulated 24 V DC on up to five power-limited outputs that you can configure as Class B or, with the ZNAC-PS converter card, as Class A without losing any outputs. Each circuit supplies as much as 3 A, and the unit supports ANSI Temporal 3 and Temporal 4 coding plus UL-listed sync for System Sensor, Wheelock, Gentex, and AMSECO appliances. Two isolated control inputs accept reverse-polarity NAC triggers or dry-contact activations, and DIP-switch programming lets you map any input to any output without software. The charger accommodates two 7 Ah or 18 Ah batteries inside the cabinet and can charge up to 33 Ah in an external box. LED indicators, dual Form C trouble relays, wide-range EOL supervision (2 kΩ to 27 kΩ), and an earth-fault enable or disable selector simplify installation and diagnostics. Model Variants: HPF-PS6 – 6 A supply in red cabinet HPF-PS6B – 6 A supply in black cabinet Key Specifications: Type: 6 A NAC power supply and battery charger Output Circuits: Up to five power-limited outputs, 3 A each, 6 A combined Class A Conversion: Add ZNAC-PS converter card Control Inputs: Two isolated triggers, 9 V DC to 32 V DC Sync and Coding: UL sync for approved brands, ANSI Temporal 3 or 4 Primary Power: 120 VAC ±10 %, 50 Hz or 60 Hz, 5.0 A maximum Battery Support: Two 7 Ah or 18 Ah internal, charging capacity to 33 Ah external Trouble Relays: Form C contacts for AC Trouble and General Trouble Compatible Modules & Accessories: ZNAC-PS – Class A output converter card Addressable control, relay, and monitor modules (choose the family that matches your host fire-alarm control panel):   • Silent Knight panels: SK-CONTROL, SK-RELAY, SK-MONITOR, SK-MONITOR-2   • Notifier panels: FCM-1, FRM-1, FMM-1, FDM-1   • Gamewell-FCI panels: AOM-2SF, AOM-2RF, AMM-4F   • Fire-Lite panels: CMF-300, CRF-300, MMF-300, MDF-300
