Notifier AFP-100 (Intelligent FACP) Replacement Board (Old Style)

$1,800.00
Availability:
4 in stock
Warranty:
90 Days
Condition:
Refurbished
Core Return:
$50
Quantity:
- +

Product Description

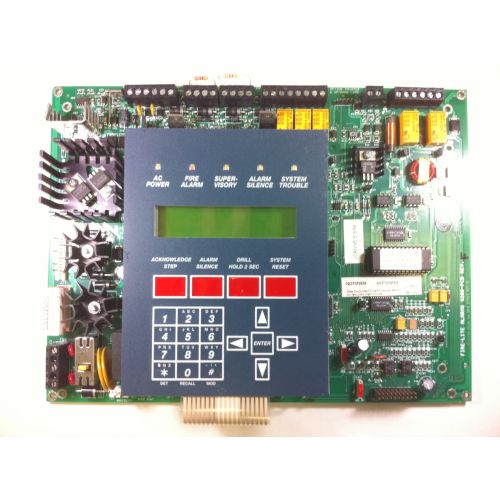

This is a Replacement Board for a Notifier AFP-100 fire alarm control panel. Old Style Replacement Boards require a DIM-485 Display Interface Module for the addition of an Annunciator.

A single Signalling Line Circuit (SLC) loop supports up to 99 analog addressable detectors and 99 addressable monitor or control modules. Can be configured for style 4, 6 or 7 operation.

Completely programmable from the front panel, or via PC using Notifier VERIFIRE-CD software (Not Included).

COMPATIBLE INTELLIGENT DETECTORS:
FSP-851 Photo Detector
FSP-851T Photo Detector w/ fixed Thermal element.
FST-851 Thermal Detector, fixed
FST-851R Thermal Detector, fixed and rate-of-rise
FAPT-851 Acclimate Plus Multi-Sensor
FSC-851 IntelliQuaD Multi-Criteria Detector
— FSA-8000 Intelligent FAAST Detector
— FCO-851 IntelliQuaD Multi-Criteria Detector + CO detector
— FMM-4-20 Gas Detection Module

COMPATIBLE INTELLIGENT BASES:
B210LP Standard U.S. flanged low-profile mounting base.
B710LP Standard replacement flanged low-profile mounting base.
B501 Standard European flangeless mounting base.
B200S Intelligent, programmable sounder base
B200SR Intelligent sounder base - Replaces B501BH series bases in retrofit applications.
B224RB Plug-in System Sensor relay base.
B224BI Plug-in System Sensor isolator detector base.
NOTE: All base types require an electrical backbox which is at least 1.5" (3.81 cm) deep.

COMPATIBLE ADDRESSABLE DEVICES:
NBG-12LX Addressable manual pull station
FMM-1 Monitor Module
FMM-101 Monitor Module Mini
FDM-1 Monitor module, dual, two independent Class B circuits
FZM-1 Monitor module, two-wire smoke detectors
FCM-1 Control Module
FRM-1 Relay Module
XP5-M Transponder, monitor, five addressable Class B circuits
XP5-C Transponder, control/relay, five addressable Class B circuits
ISO-X Isolator Module
This part is also eligible for a $50 core return refund. After you replace your panel, send us the damaged one and receive a refund back to your credit card, a payment through PayPal, or a store credit.
Please note: All parts should be installed and tested by a certified fire alarm company.

Questions (4)

What is the operating voltage for the Notifier AFP-100 panel?
Answer:
Standard operating voltage is 120 VAC, 50/60 Hz, 3.0 A.
Does the Notifier AFP-100 panel have a built-in dialer?
Answer:
This panel does not have a built-in dialer. The Notifier UDACT is the recommended dialer for use with this panel. However, you can also connect any other compatible external dialer.
What if I need to return this?
Answer:
All products are covered by our 90-day warranty and come with a prepaid UPS return label and RMA form. Returning products has never been this easy.
What if I need support?
Answer:
Our friendly team is on hand with expert advice and assistance. Contact us Mon-Fri 8am-8pm by phone (888.303.2656), by email (support@buyfirealarmparts.com) or using our online chat. Responses within 1 business day (if not sooner!)
