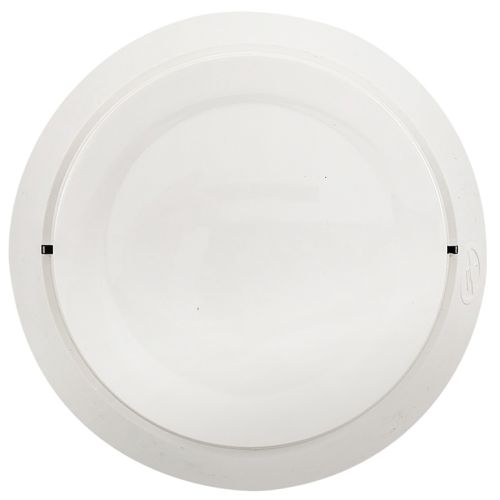

Notifier FSP-951T-IV Photoelectric Sensor Head w/ Thermal Sensor (Ivory)

The Notifier FSP-951T-IV is a low profile intelligent addressable photoelectric smoke and heat detector with a built-in 135F fixed temperature heat sensor. It uses rotary decimal switches for device addressing. It replaces the Notifier FSP-851T series and uses both CLIP and FlashScan protocol devices. Key Specifications: Type: Intelligent addressable photoelectric smoke detector with a 135F fixed temperature heat sensor Core Function(s): Provides a low profile photoelectric sensor precisely detecting smoke Loop/Protocol: Notifier SLC; FlashScan and CLIP Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC, 4.5 mA in alarm (LED on). Max Current 4.5 mA @ 24 VDC (“ON”) Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet Compatible Bases & Accessories: B300-6-IV – 6 inch ivory standard flanged low profile mounting base B501-IV – Ivory 4 inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base [B200SR-IV] – Ivory, Intelligent sounder base for retrofit applications B224RB-IV – Ivory relay detector base B224BI-IV – Ivory isolator detector base TR300-IV – Ivory, replacement flange RA100Z – Remote LED annunciator System Compatibility: Works with Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol on the SLC loop.
