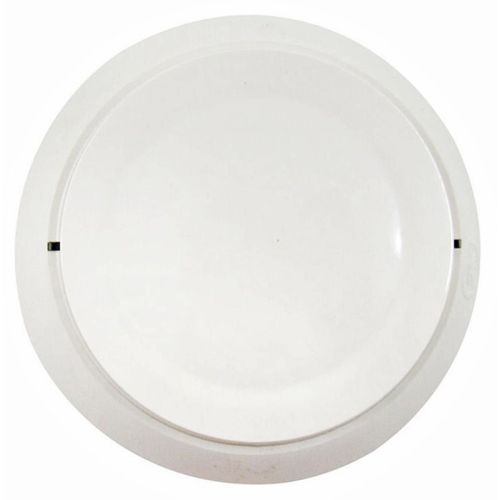

Notifier FSV-951R-IV Very Intelligent Early Warning (VIEW) Detector (Ivory)

The Notifier FSV-951R-IV (VIEW) is an intelligent high sensitivity photoelectric smoke detector for very early warning fire detection on Notifier SLC loops using FlashScan or CLIP protocol. It uses a refined smoke sensing chamber and patented optic block to boost real smoke signals while reducing stray reflections that can cause false alarms. The FSV-951R-IV is UL listed for open area and duct use in DNR/DNRW housings, uses rotary decimal switches for addressing, and serves as the modern replacement for the legacy FSL-751 laser detector. Key Specifications: Type: Very Intelligent Early Warning (VIEW) photoelectric smoke detector Core Function(s): Provides very early warning photoelectric smoke detection with ultra high sensitivity (0.02 to 2.0 %/ft obscuration) to protect critical equipment while minimizing nuisance alarms. Loop/Protocol: Notifier SLC; FlashScan and CLIP Power: 15 to 32 VDC from SLC; 300 μA standby at 24 VDC, 2 mA alarm current at 24 VDC, 4.5 mA maximum at 24 VDC Indicators/UI: Dual LEDs provide 360° status indication, blinking in communication and latching in alarm; address set by rotary decimal switches; local functional test via external magnet and panel-initiated self diagnostics Compatible Bases & Accessories: B300-6-IV – 6 inch ivory standard flanged low profile mounting base B501-IV – Ivory 4 inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base B224BI-IV – Ivory isolator detector base B224RB-IV – Ivory relay detector base RA100Z – Remote LED annunciator TR300-IV – Ivory trim ring for a finished ceiling appearance System Compatibility: Works with Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol on the SLC loop.
