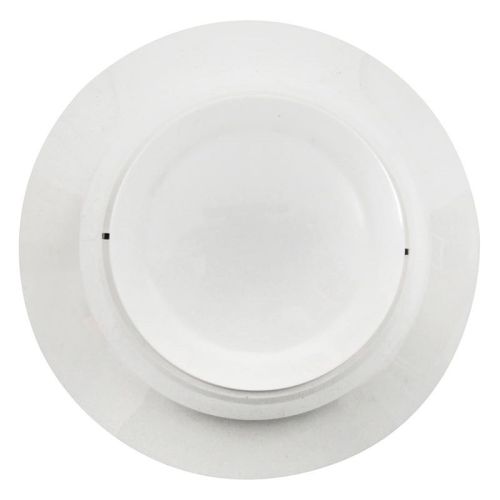

Notifier NP-200-IV Photoelectric Smoke Detector (Ivory)

The Notifier NP-200-IV is an intelligent addressable plug in photoelectric smoke detector exclusively for use with Notifier Fire Warden addressable fire control panels using FlashScan or CLIP protocol. The Notifier NP-200-IV includes a B300-6-IV detector base. This detector uses rotary decimal switches for device addressing and has dual LEDs to provide visible sensor indication. It replaces the legacy NP-100 Series and uses an enhanced optical sensing chamber designed to respond to a wide range of common smoke conditions. Key Specifications: Type: Intelligent addressable photoelectric smoke detector Core Function(s): Provides addressable photoelectric smoke detection using an enhanced optical sensing chamber. Loop/Protocol: Notifier SLC; FlashScan and CLIP Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 4.5 mA max @ 24 VDC (“ON”) Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet Compatible Bases & Accessories: B300-6-IV – 6-inch ivory standard flanged low profile mounting base B501-IV – Ivory 4-inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base B224RB-IV – Ivory relay detector base B224BI-IV – Ivory isolator detector base RA100Z – Remote LED annunciator TR300-IV – Ivory trim ring System Compatibility: Exclusively for Notifier FireWarden Series addressable fire alarm control panels; “-IV” suffix indicates CLIP and FlashScan device.
