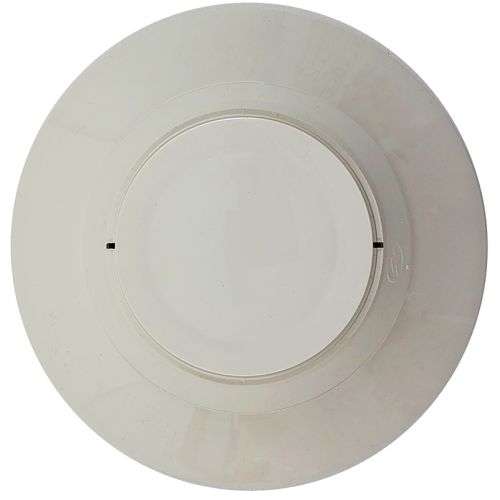

Notifier NP-200T-IV Photo Detector w/ 135F Fixed Temp Sensor (Ivory)

The Notifier NP-200T-IV is a plug in intelligent addressable photoelectric smoke detector with a built-in 135F (57C) fixed-temperature thermal sensor. The Notifier NP-200T-IV includes a B300-6-IV detector base. This device is exclusively for use with Notifier FireWarden Series addressable fire control panels using FlashScan or CLIP protocol, and it uses rotary decimal switches for precise location identification (Point ID). It replaces the older NP-100T Series. Key Specifications: Type: Intelligent addressable photoelectric smoke detector with 135F (57C) fixed-temperature thermal sensor Core Function(s): Provides intelligent addressable photoelectric smoke detection with fixed-temperature heat sensing (135F). Loop/Protocol: Notifier SLC; FlashScan and CLIP Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 4.5 mA max @ 24 VDC (“ON”) Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet; dual LEDs for visible sensor indication Compatible Bases & Accessories: B300-6-IV – 6-inch ivory standard flanged low profile mounting base B501-IV – Ivory 4-inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base B224BI-IV – Ivory isolator detector base B224RB-IV – Ivory relay detector base RA100Z – Remote LED annunciator TR300-IV – Ivory trim ring System Compatibility: Exclusively for Notifier FireWarden Series addressable fire alarm control panels; “-IV” suffix indicates CLIP and FlashScan device.
