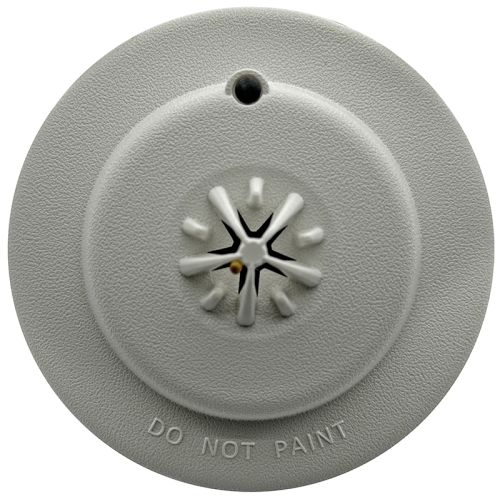

Potter PAD100-HD Rate of Rise / Fixed Temperature Heat Sensor

Potter PAD100-HD Rate of Rise / Fixed Temperature Heat Sensor is an Analog Addressable smoke sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. Features selectable Rate of Rise (15°F/min) and/or Fixed Heat (set point range 135 to 185 °F) Detector. The unit communicates with the control panel as it is polled. The LEDs flash every time the unit is polled and they will flash rapidly if the unit is in an active status. The polling LED can be turned off if desired for less conspicuous operation. The sensor is compatible with any of the PAD series twist-on sensor bases. The PAD100-HD is addressed using DIP switches in the rear of the sensor. COMPATIBLE BASES: — PAD100-4DB 4” Standard Base — PAD100-6DB 6” Standard Base — PAD100-IB 6” base with an isolator module included. — PAD100-RB 6” base with one Form-C relay contact. 2A @ 30VDC, 0.5A @ 125VAC — PAD100-SB 6" base with sounder module included. Sound pattern is provided from external source. — PAD100-SPKB 6” base with speaker included
