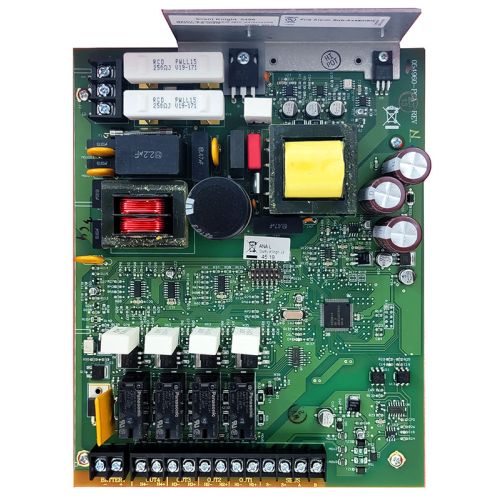

Silent Knight 5496 Intelligent Power Module (Gen 2)

The Silent Knight Model 5496 Intelligent Power Module provides additional power and notification circuits to a Silent Knight addressable FACP. The 5496 can power all IntelliKnight compatible notification appliances and auxiliary power modules. NOTE: Gen 2 Replacement Boards feature a 6-pin DIP switch The 5496 is capable of performing single or dual interlocking operations for pre-action and deluge releasing systems. The 5496 has four output circuits that can be configured as notification or auxiliary power circuits. Outputs are rated 3.0 A (6.0 A total for each 5496). The 5496 provides configuration options that eliminate the need for sychronization modules when using AMSECO, Faraday, Gentex, System Sensor, or Wheelock synchronization appliances.
