Silent Knight 5820XL (Intelligent FACP + DACT) Replacement Board (V.9 & Below) w/ Hochiki Programming Only

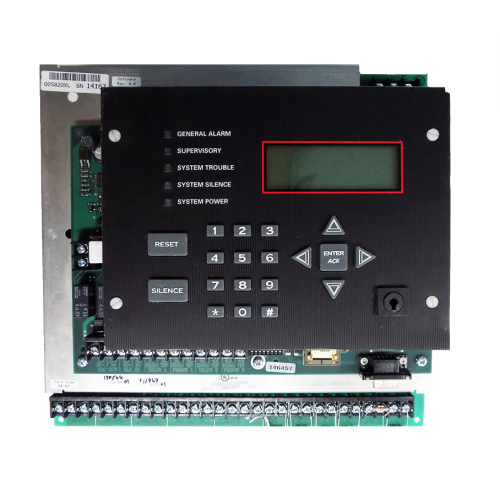

NOTE: This FACP is discontinued by the manufacturer. Replace with: Silent Knight 6820 Intelligent FACP. The 5820XL Replacement Board (V.9 & Below) is the main control board for the Silent Knight 5820XL intelligent addressable fire alarm control panel. It includes a built-in dual-line digital communicator for central-station reporting, six Flexput I/O circuits that can be configured as NACs, inputs, or auxiliary power, and an integrated 6 A power supply. This version supports Hochiki SD protocol only and should be used on systems programmed exclusively for SD devices. Key Specifications: Type: Intelligent addressable FACP main control board with built-in DACT SLC Device Capacity (SD protocol only): 127 devices on board, expandable to 508 devices with 5815XL SLC expander I/O & Synchronization: Six Flexput I/O circuits; built-in synchronization for AMSECO, Gentex, Faraday, System Sensor, and Wheelock appliances User Interface & Ports: Built-in 80-character LCD annunciator and keypad; RS-485 for programming and accessories Power Supply / Charging: 6 A supply; battery charging capacity 7–35 Ah (18 Ah max in main cabinet; higher with external battery cabinet) Primary Power: 120 VAC, 60 Hz, 2.5 A Compatible Modules & Accessories: 5860 – LCD remote annunciator (gray) 5860R – LCD remote annunciator (red) 5815XL – SLC expander 5895XL – Intelligent power module 5496 – 6 A notification power expander 5880 – LED I/O module 5883 – 10-relay interface board 5824 – Serial/parallel printer interface Compatible Detectors & Devices: Compatible with SD-series (Hochiki protocol) addressable detectors and modules only; this version does not support SK-series devices.
