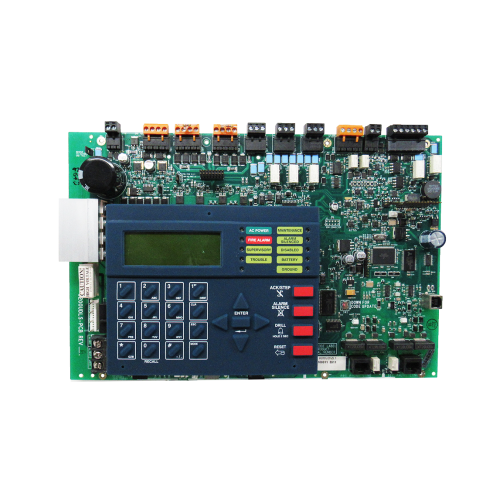

Fire-Lite MS-9200UDLS (Intelligent FACP + DACT) Replacement Board, New Style

NOTE: This part is discontinued by the manufacturer. Replace with: Fire-Lite ES-200X This is the Replacement Board for the Fire-Lite MS-9200UDLS fire alarm control panel. The Fire-Lite MS-9200UDLS is a combination FACP (Fire Alarm Control Panel) and DACT (Digital Alarm Communicator/Transmitter) all on one circuit board. Compatible with Fire-Lite’s newer series devices in LiteSpeed and CLIP mode; Compatible with legacy Fire-Lite 300 Series devices in CLIP mode only. NOTE: Old Style Boards have removable terminal blocks and are mounted differently in the cabinet; New style Boards have programmable bell circuits in place of the (Old Style) A/B selectable card. FEATURES AND OPTIONS: — Automated activation of the ECC-50/100 Emergency Command Center — ECC-FFT Firefighter Telephone option — LiteSpeed polling protocol for faster SLC response time — SLC operates up to 10,000 ft. (3,000 m) in LiteSpeed mode with twisted, unshielded wire — Built-in DACT (Digital Alarm Communicator/Transmitter) — Single addressable SLC loop which meets NFPA Style 4, 6 and 7 requirements — 198 addressable device capacity (99 detectors and 99 control/relay/monitor modules) — 99 software zones — Four (4) Style Y (Class B) NACs (Notification Appliance Circuits) with the option to convertvto four (4) Style Z (Class A) circuits — 3.0 amps total 24 VDC output circuit current, expandable to 6.0 amps with optional transformer — Two programmable relay outputs and one fixed trouble relay — Optional 4XTMF module (conventional reverse polarity/city box transmitter) — Optional ZNAC-92 Class A converter module for NACs ANN-BUS ANNUNCIATORS / MODULES: — ANN-80 LCD Annunciator — ANN-80C LCD Indicator (Canadian Applications) — ANN-S/PG Serial/Parallel Printer Interface Module — ANN-I/O LED Driver Module — ANN-LED Annunciator Module (alarm, trouble, supervisory LEDs) — ANN-RLED Annunciator Module (red alarm LEDs only) — ANN-RLY Relay Module (can be mounted in the supplied FACP chassis) — ANN-LC Lite-Connect Module (secondary ANN-BUS only) LEGACY ACS ANNUNCIATORS: — ACM-16ATF Annunciator Control Module annunciates 16 zones with 16 red alarm LEDs and 16 yellow trouble LEDs — AEM-16ATF Annunciator Expander Module annunciates 16 zones with 16 red alarm LEDs and 16 yellow trouble LEDs — ACM-32AF Annunciator Control Module annunciates 32 alarm zones with 32 red LEDs — AEM-32AF Annunciator Expander Module annunciates 32 alarm zones with 32 red LEDs
