Kidde VS1-RE Replacement Electronics Assemby Kit

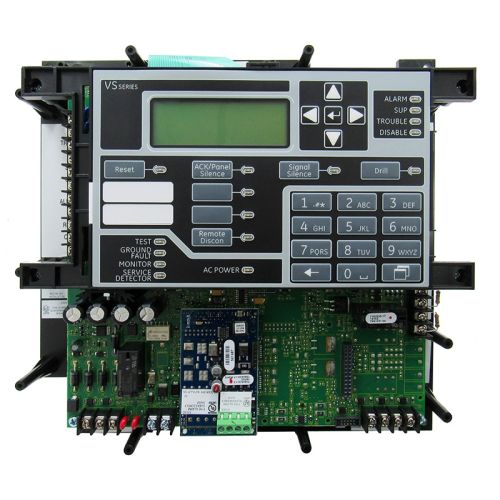

The Kidde VS1-RE kit provides a complete replacement electronics assembly for VS1-series fire-alarm control panels. It includes the main controller board, four-line LCD display, power-supply chassis, and ribbon harnesses that mount on the existing VS1 cabinet backplate. Installing the VS1-RE restores all original functions such as the Signature SLC loop, two NACs, a 3.75 A power supply, dual Form C relays, strobe synchronization, ANSI Temporal coding, and programmable front-panel switches without disturbing field wiring or the enclosure. Compatible Panel Models: VS1-G – Gray door, no dialer VS1-GD – Gray door, dual-line dialer VS1-R – Red door, no dialer VS1-RD – Red door, dual-line dialer VS1-RE – Replacement electronics assembly (main board) Key Specifications: Application: Direct replacement electronics for VS1 panels listed above SLC Capacity: One Class B Signature loop, 64 addressable devices (convertible to Class A with SA-CLA) NAC Capacity: Two Class B outputs, 2.5 A each (3.75 A total) — convertible to Class A with SA-CLA Power Supply: 3.75 A full-wave-rectified (uses existing VS1 cabinet transformer) User Interface: Four-line × 20-character LCD, keypad, two programmable switches Relays: On-board Form C alarm relay and Form C trouble relay Communications: Header for SA-DACT dual-line dialer (Contact ID) Battery Charger: Charges up to two 10 Ah batteries in the VS1 cabinet (26 Ah charging capacity) Compatible Modules & Accessories: V-SLC2-1 – 64-point replacement loop controller (service board for VS1 panels) SA-DACT – Dual-line dialer / modem SA-232 – RS-232 interface card SA-ETH – Ethernet interface card SA-CLA – Class A adapter module K-RLCD – LCD remote annunciator (gray) K-RLCD-CR – LCD remote annunciator (red, with controls) CTM – City-tie module BC-1R – 24 Ah battery cabinet (red) MFC-A – Multifunction accessory cabinet Compatible Detectors & Devices: KI-OSD – Optical smoke detector KI-OSHD – Optical smoke + heat detector KI-HFD – Fixed-temperature heat detector KI-HRD – Fixed-temperature / rate-of-rise heat detector KI-HCD – Heat + CO detector KI-SB – Standard detector base KI-IB – Isolator detector base KI-RB – Relay detector base KI-ABST – Sounder detector base GSA-CC1 – Control module GSA-CR – Relay control module GSA-MM1 – Monitor module
