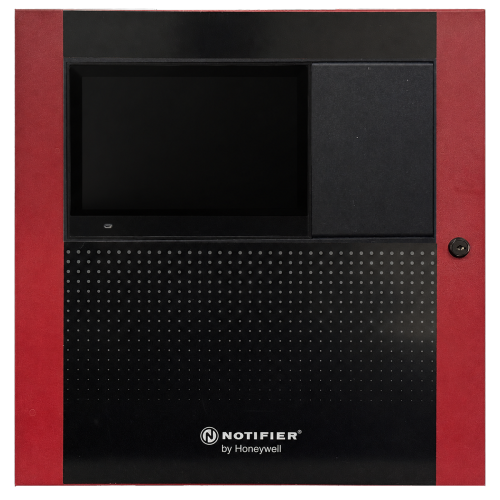

Notifier N16E-R INSPIRE Series (Intelligent FACP, Red)

The Notifier N16E-R is an INSPIRE Series intelligent addressable FACP with one FlashScan SLC loop, a 10-inch color touchscreen, four configurable NAC/power outputs, and a factory red enclosure. It supports 318 addressable devices on the included loop and can expand to 954 devices across three SLC loops with added SLM-318 modules. Key Specifications: Type: Intelligent addressable FACP in red enclosure Device Capacity: 318 devices on the included SLC loop; expandable to 954 devices with up to three total loops Protocol: FlashScan; CLIP available with N16-CLIP license NAC Circuits: Four Class A/B configurable outputs for NAC, power, door holder, or UZC operation Power: 120 VAC at 2.5 A or 240 VAC at 1.25 A, 50/60 Hz System Output: 6.0 A power supply with two 24 VDC auxiliary outputs rated 2.0 A each Battery Support: 7 AH to 210 AH charging range; up to 26 AH batteries fit inside the N16e enclosure Display/UI: 10-inch color touchscreen with color-coded event display and customizable buttons Communicator: Optional CLSS Gateway, DACT, or LTE/IP communicator Compatible Modules & Accessories: SLM-318 - Signaling Line Module for SLC expansion RLD - Remote display ACM-30 - Customizable annunciator PMB-AUX - Auxiliary 6 A power supply HON-CGW-MBB - CLSS Gateway HON-DACT-DS - Darksite dialer NCM-W - Network communications module, wire NCM-F - Network communications module, fiber HS-NCM-W-2 - High-speed network communications module, wire TM-8 - Relay and remote station module Compatible Detectors & Devices: FSP-951 - Intelligent photoelectric smoke detector FSP-951T - Intelligent photoelectric smoke and fixed heat detector FST-951 - Intelligent thermal detector FCO-951 - Intelligent fire and CO multi-criteria detector FMM-1 - Monitor module FCM-1 - Control module FRM-1 - Relay module FDRM-1 - Dual monitor/dual relay module NBG-12LX - Addressable manual pull station System Compatibility: Notifier INSPIRE Series N16e/N16x systems using FlashScan SLC devices, with optional CLIP support through licensing.
