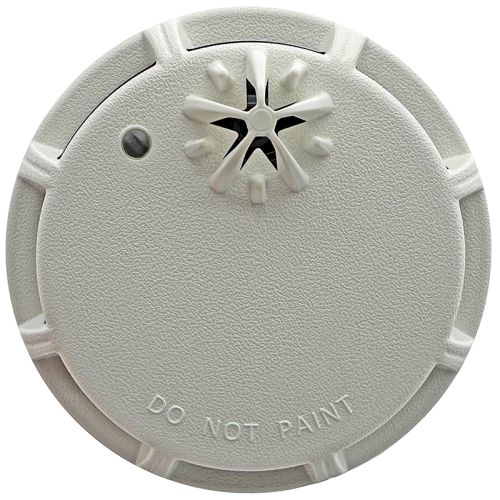

Potter PAD200-PHD Combination Smoke / Heat Detector

The Potter PAD200-PHD Combination Smoke / Heat Detector is an Analog Addressable photoelectric smoke plus heat sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. Features selectable Rate of Rise (15°F/min) and/or Fixed Heat (135F) Detector. The unit communicates with the control panel as it is polled. The LEDs flash every time the unit is polled and they will flash rapidly if the unit is in an active status. The polling LED can be turned off if desired for less conspicuous operation. The sensor is compatible with any of the PAD series twist-on sensor bases. The PAD200-PHD is addressed using DIP switches in the rear of the sensor. COMPATIBLE BASES: — PAD100-4DB 4” Standard Base — PAD100-6DB 6” Standard Base — PAD100-IB 6” base with an isolator module included. — PAD100-RB 6” base with one Form-C relay contact. 2A @ 30VDC, 0.5A @ 125VAC — PAD100-SB 6" base with sounder module included. Sound pattern is provided from external source. — PAD100-SPKB 6” base with speaker included
