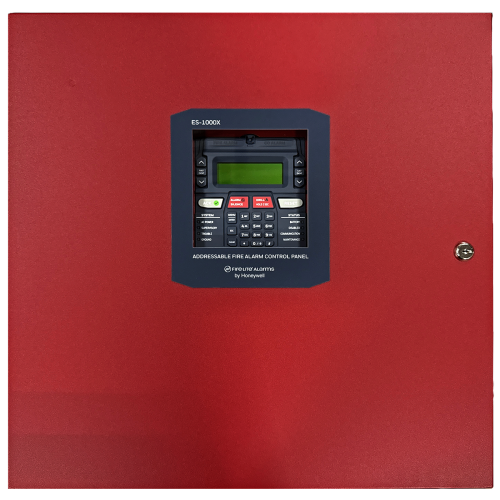

Fire-Lite ES-1000X Intelligent Addressable FACP

The Fire-Lite ES-1000X is an addressable fire alarm control panel supporting up to 318 devices per loop, including 159 detectors and 159 modules. The panel can expand to support up to 954 devices with two additional SLC-3LS expander modules. It features one SLC loop that supports the LiteSpeed protocol and four Class A/B NACs rated at 3 Amps per circuit. The panel comes with a pre-installed IPOTS-COM communicator. Model Variants: ES-1000X = Pre-installed Communicator ES-1000XI = No Communicator Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 318 per loop (159 detectors + 159 modules), 954 max (with 2 optional SLC-3LS loop expanders) Protocol: LiteSpeed NAC Circuits: 4 Class A/B, 3.0A per circuit Power: 120 VAC input System Output: 8.0A (max) total NAC/Aux output Battery Support: Min 18AH, 55AH max charging capacity Dialer/Communicator: IPOTS-COM communicator (included) Compatible Modules & Accessories: Loop Expansion Module - SLC-3LS Battery Chargers - CHG-75, CHG-120F External Power Supplies - FL-PS6, FL-PS-10, HPF-PS-6, HPF-PS10 Annunciators - ANN-80, ANN-100, ANN-LED Additional Modules - ANN-RLY, 4XTMF Compatible Detectors & Devices: Photoelectric Smoke - SD365 (LiteSpeed), SD365-IV (LiteSpeed and CLIP) Photoelectric Smoke w/ Thermal Sensor - SD365T (LiteSpeed), SD365T-IV (LiteSpeed and CLIP) Photoelectric Smoke w/ Remote Test - SD365R (LiteSpeed), SD365R-IV (LiteSpeed and CLIP) Fire/CO Detector - SD365CO Thermal Sensor - H365 (LiteSpeed), H365-IV (LiteSpeed and CLIP) Supervised Control Module - CMF-300 Relay Control Module - CRF-300, CRF-300-6 (Six Relay)
