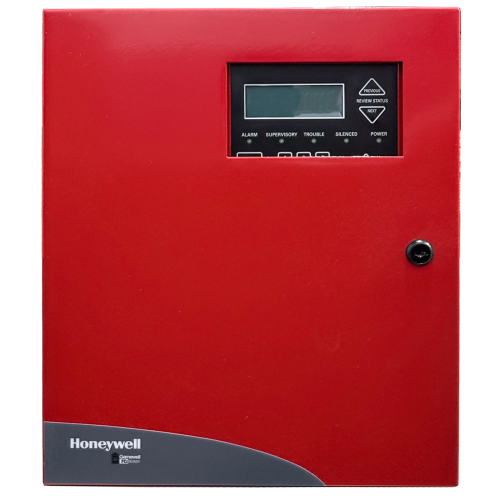

Gamewell-FCI GWF-7075 Intelligent Addressable FACP (Red Cabinet)

The GWF-7075 (Red Cabinet) is an intelligent addressable fire alarm control panel with one on-board SLC supporting up to 75 detectors and 75 modules using the System Sensor Velociti protocol, plus support for SWIFT wireless devices. It includes a four-line LCD, USB for programming, two configurable NACs, and Class A or Class B options for SLC and SBUS wiring. A built-in dual-line DACT supports IP reporting, with optional cellular add-on. Model Variants: GWF-7075 – Red cabinet GWF-7075B – Black cabinet Key Specifications: Type: Addressable FACP with four-line LCD (40 characters per line) SLC Capacity: Up to 75 detectors + 75 modules (Velociti); supports up to four SWIFT gateways (49 wireless devices per gateway) NAC Circuits: Two configurable NACs; up to 1 A per NAC, 2.5 A system total Communications: Built-in dual-line DACT with IP; optional cellular Programming: USB interface; JumpStart Auto Programming; front-panel programming supported Wiring Classes: Class B (Style 4) and Class A (Style 6/7) for SLC and SBUS Power & Battery: Primary 120 VAC, 60 Hz; battery charging 7–35 Ah (7 Ah max in panel; larger in external cabinet) Compatible Modules & Accessories: RA-1000 – Remote annunciator (gray) RA-1000R – Remote annunciator (red) GFPS-6S – 6 A remote power supply with appliance sync; outputs programmable as NACs or auxiliary power Compatible Detectors & Devices (examples): ASD-PL3 – Velociti Series 3 photoelectric smoke detector ATD-L3 – Velociti Series 3 thermal heat detector MS-7AF – Velociti addressable dual-action pull station AMM-4SF – Addressable monitor module (Class A/B configurable) AMM-2F – Mini monitor module (Class B)
