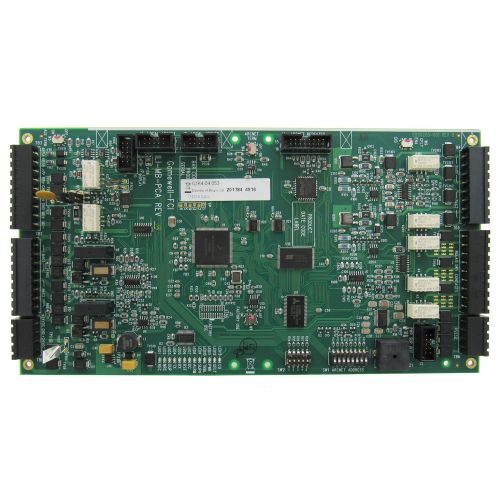

Gamewell FCI ILI-MB-E3 Intelligent Loop Interface Main Board

The Gamewell FCI ILI-MB-E3 Intelligent Loop Interface Main Board is the main interface for the E3 Series of products from Gamewell FCI. Intended for use in the following systems: — E3 Series Expandable Emergency Evacuation System — E3 Series Combined Fire and Mass Notification System — E3 Series Broadband Voice Command Center Features two signaling line circuits and terminals for the connections to up to 159 detectors, 159 modules and 159 addressable sounder bases per SLC in Velociti mode. In CLIP mode, each SLC supports 99 detectors and 99 modules. The RS-485 interface can support a variety of peripheral devices. The ILI-MB-E3 is network-ready and occupies 1 of 64 nodes operating at 625K baud. In addition, the Addressable Node Expander (ANX) board expands the network to 122 nodes. The ILI-MB-E3 provides two notification appliance circuits. The ILI-MB-E3 relay outputs include system alarm, supervisory, and system trouble contacts. The ILI-MB-E3 provides output for a local energy city master box or remote location which is non power-limited. All other wiring is Class 2 power-limited.
