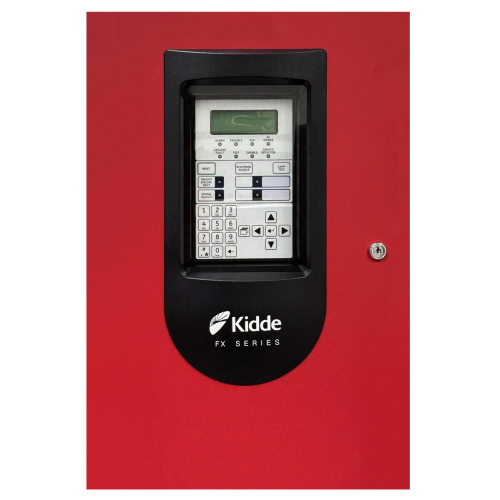

Kidde FX-64RD (Intelligent FACP) w/ Dialer

This part has been discontinued and replaced by FX-64R + SA-DACT The Kidde FX-64RD is an intelligent addressable fire-alarm control panel with a factory-installed dual-line dialer. One Class A/B SLC loop supports up to 64 addressable devices in any combination of detectors and modules. Two onboard NACs provide 3.75 A total notification power and may be wired as Class B circuits or converted to Class A with the optional SA-CLA module. The panel operates from 120 VAC (1.3 A max) and delivers 27.4 V DC power-limited outputs. Up to two 10 Ah batteries fit inside the cabinet; charging capacity is 26 Ah. Events are reported to a central station via the integrated dual-line dialer in Contact ID format. Model Variants: FX-64R – No dialer FX-64RD – Dual-line dialer included Key Specifications: Type: Intelligent addressable FACP Point Capacity: 64 addressable devices SLC Loops: 1 Class A/B NAC Circuits: 2 Class B (optional Class A with SA-CLA), 2.5 A per circuit, 3.75 A total Primary Power: 120 VAC 60 Hz, 1.3 A max Accessory Power: 27.4 V DC, 500 mA each on two auxiliary outputs Battery Support: Two 10 Ah internal, 26 Ah charging capacity Communicator: Built-in dual-line dialer (Contact ID) Compatible Modules & Accessories: FX-SLC1 – Replacement 64-point loop card RZI16-2RS – 16-IDC / 2-NAC zone interface module SA-ETH – Ethernet interface SA-232 – RS-232 printer/computer interface SA-CLA – Class A NAC adapter (FX-64 only) SA-TRIM1 – Flush-mount trim kit CTM – City-tie module BC-1R – 24 Ah battery cabinet MFC-A – Multifunction auxiliary cabinet Compatible Detectors & Devices: KI-OSD – Optical smoke detector KI-OSHD – Optical smoke / fixed-temperature heat detector KI-OSCD – Optical smoke + CO detector KI-HRD – Rate-of-rise heat detector KI-HFD – Fixed-temperature heat detector KI-HCD – Heat + CO detector KIR-OSD – Optical smoke detector (rotary-addressed) KIR-HD – Fixed-temperature / rate-of-rise heat detector (rotary-addressed) KIR-HCD – Heat + CO detector (rotary-addressed) KI-SB – Standard base KI-IB – Isolator base KI-RB – Relay base KI-ABST – Sounder base FX-270 – Single-action addressable pull station FX-278 – Dual-action addressable pull station
