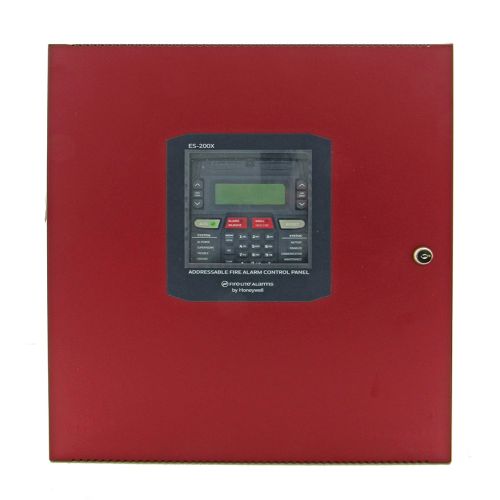

Fire-Lite ES-200X Intelligent Addressable FACP with Communicator

The Fire-Lite ES-200X is an addressable fire alarm control panel that supports up to 198 devices, consisting of 99 detectors and 99 modules on a single SLC loop. It operates with both LiteSpeed and CLIP communication protocols. The panel includes a factory-installed IPOTS-COM communicator that enables signal reporting over IP and traditional telephone lines. It also features four Class A or B NAC circuits and built-in Form-C relays for alarm and system control. The ES-200X serves as a direct replacement for the MS-9200UDLS control panel. Model Variants: ES-200X = Includes pre-installed IPOTS-COM communicator (IP + POTS) ES-200XI = No communicator included ES-200X Replacement Board with Chassis (Refurbished) = Includes pre-installed IPOTS-COM Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 198 total addressable devices (99 detectors + 99 modules) Protocol: LiteSpeed and CLIP Power Input: 120/240 VAC auto-sensing, 50/60 Hz, 3.25A NAC Circuits: 4 Class A/B, 250mA regulated per circuit (2.5A for special applications) System Output: 2.7A shared across NACs and ANN-BUS Battery Support: Supports two 12V 18AH batteries Communicator: IPOTS-COM (included) Relays: Two programmable Form-C relays, one fixed trouble relay Compatible Modules & Accessories: Battery Chargers – CHG-75, CHG-120F Annunciators – ANN-80, ANN-100, ANN-LED, ANN-RLY Additional Modules – 4XTMF, PWRMOD24 Compatible Detectors & Devices: Photoelectric Smoke – SD365 (LiteSpeed), SD365-IV (LiteSpeed and CLIP) Photoelectric + Thermal – SD365T (LiteSpeed), SD365T-IV (LiteSpeed and CLIP) Remote Test Smoke – SD365R (LiteSpeed), SD365R-IV (LiteSpeed and CLIP) Fire/CO Combo – SD365CO Thermal Sensors – H365 (LiteSpeed), H365-IV (LiteSpeed and CLIP) Control Modules – CMF-300, CMF-300-6 Relay Modules – CRF-300, CRF-300-6 (Six Relays)
