Fire-Lite ES-200X Replacement Board with Chassis

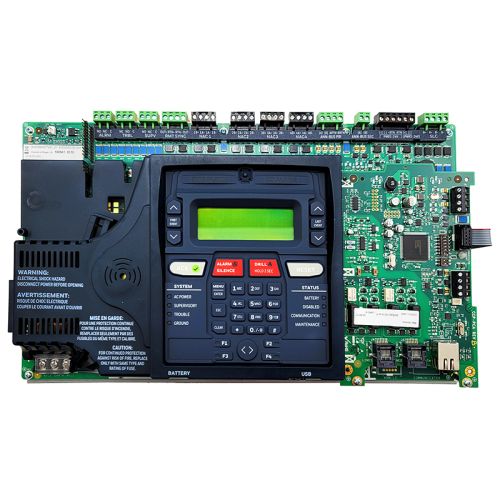

The Fire-Lite ES-200X Replacement Board with Chassis (Refurbished) includes the ES-200X main control board mounted to a metal chassis. The IPOTS-COM communicator is pre-installed, providing dual-path signal reporting over IP and traditional phone lines. The board supports up to 198 addressable devices, with 99 detectors and 99 modules operating on a single SLC loop. It is compatible with both LiteSpeed and CLIP protocols and includes four Class A or B NAC circuits along with built-in Form-C relays for system control. Cabinet is not included The ES-200X serves as a direct replacement for the MS-9200UDLS control panel. Model Variants: ES-200X (NEW) = Includes pre-installed IPOTS-COM communicator ES-200XI = No communicator included Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 198 total addressable devices (99 detectors + 99 modules) Protocol: LiteSpeed and CLIP Power Input: 120/240 VAC auto-sensing, 50/60 Hz, 3.25A NAC Circuits: 4 Class A/B, 250mA regulated per circuit (2.5A for special applications) System Output: 2.7A shared across NACs and ANN-BUS Battery Support: Supports two 12V 18AH batteries Communicator: IPOTS-COM (included) Relays: Two programmable Form-C relays, one fixed trouble relay Compatible Modules & Accessories: Battery Chargers – CHG-75, CHG-120F Annunciators – ANN-80, ANN-100, ANN-LED, ANN-RLY Additional Modules – 4XTMF, PWRMOD24 Compatible Detectors & Devices: Photoelectric Smoke – SD365 (LiteSpeed), SD365-IV (LiteSpeed and CLIP) Photoelectric + Thermal – SD365T (LiteSpeed), SD365T-IV (LiteSpeed and CLIP) Remote Test Smoke – SD365R (LiteSpeed), SD365R-IV (LiteSpeed and CLIP) Fire/CO Combo – SD365CO Thermal Sensors – H365 (LiteSpeed), H365-IV (LiteSpeed and CLIP) Control Modules – CMF-300 Relay Modules – CRF-300, CRF-300-6 (Six Relays)
