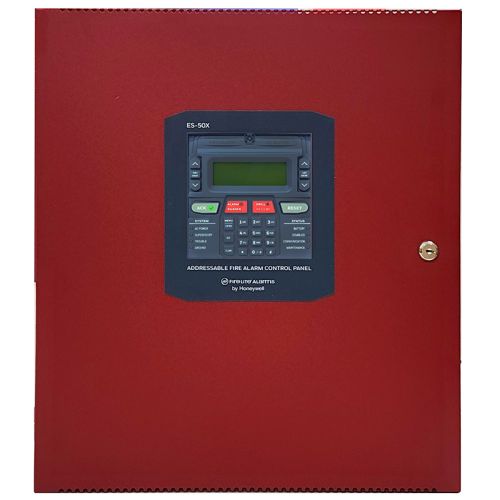

Fire-Lite ES-50XI Intelligent Addressable FACP

The Fire-Lite ES-50XI is an intelligent addressable fire alarm control panel designed to support up to 50 addressable devices in any combination of detectors and modules. It features a single SLC loop compatible with both LiteSpeed and CLIP protocols, along with two Class A/B NAC circuits and built-in programmable relays. The ES-50XI does not include a pre-installed IPOTS-COM communicator. The ES-50XI is a direct replacement for the MS-9050UD fire alarm control panel. Model Variants: ES-50X = Pre-installed IPOTS-COM communicator ES-50XI = No communicator Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 50 addressable devices (detectors and modules combined) Protocol: LiteSpeed and CLIP Power Input: 120/240 VAC auto-sensing, 50/60 Hz, 3.25A NAC Circuits: 2 Class A/B, 250mA regulated per circuit (2.5A for special applications) System Output: 2.7A total shared across NACs and ANN-BUS Battery Support: 7-18AH (cabinet holds up to two 18AH batteries) Dialer/Communicator: Not included (optional IPOTS-COM) Relays: Two programmable Form-C relays and one fixed trouble relay Compatible Modules & Accessories: Battery Chargers - CHG-75, CHG-120F Annunciators - ANN-80, ANN-100, ANN-LED Additional Modules - ANN-RLY, 4XTMF Compatible Detectors & Devices: Photoelectric Smoke - SD365 (LiteSpeed), SD365-IV (LiteSpeed and CLIP) Photoelectric Smoke w/ Thermal - SD365T (LiteSpeed), SD365T-IV (LiteSpeed and CLIP) Photoelectric Smoke w/ Remote Test - SD365R (LiteSpeed), SD365R-IV (LiteSpeed and CLIP) Fire/CO Detector - SD365CO Thermal Sensor - H365 (LiteSpeed), H365-IV (LiteSpeed and CLIP) Control Modules - CMF-300 Relay Modules - CRF-300, CRF-300-6 (Six Relays)
