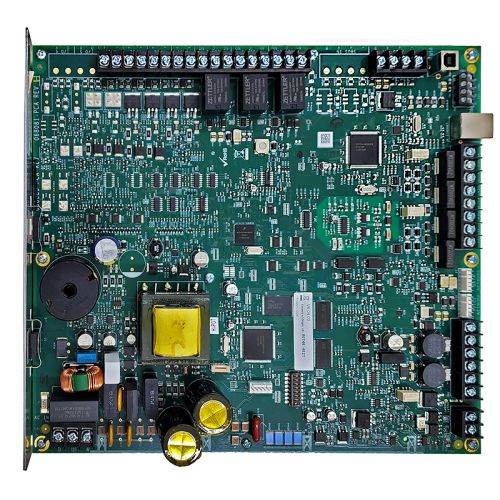

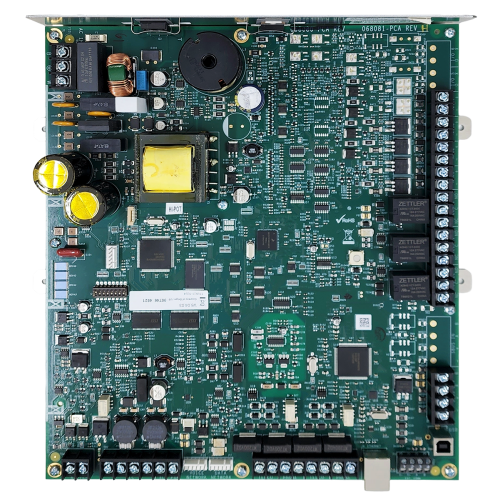

Silent Knight IFP-300BD (Replacement Electronics Assembly, Main Board)

The IFP-300BD is the replacement electronics assembly for Silent Knight IFP-300 series control panels. This field-replaceable main board restores full functionality to existing IFP-300 or IFP-300B cabinets. When installed, it provides one SLC supporting up to 159 IDP/SK detectors and 159 IDP/SK modules per loop, or 127 SD devices per loop. System capacity is up to 300 addressable points with IDP/SK devices or 254 points with SD devices. Four Flexput circuits can be configured as NAC outputs or auxiliary power. Series features remain available, including JumpStart auto programming, drift compensation with maintenance alerts, a 4×40 LCD, and networking for up to 32 panels via SK-NIC with copper or fiber options. Model Variants: IFP-300 – Red Cabinet IFP-300B – Black Cabinet IFP-300BD – Replacement electronics assembly (main board) Key Specifications: Type: Replacement electronics assembly for IFP-300 series with built-in IP/POTS communicator Device Capacity: Up to 300 (IDP/SK) or 254 (SD) addressable points per system SLC Loops: 1 built-in loop, expandable via SLC expander modules for IDP/SK or SD device families NAC / Flexput Circuits: Four configurable circuits, 3.0 A per circuit, 6.0 A maximum total, power limited and supervised Communication: IP and POTS reporting standard; optional cellular communicator Networking: Up to 32 panels networked with SK-NIC using copper or fiber interfaces Programming: Onboard keypad or PC via USB using HFSS; JumpStart auto programming Primary Power: Uses host cabinet’s supply and transformer (ratings per IFP-300 series) Battery Support: Uses host cabinet’s battery space and charger (ratings per IFP-300 series) Compatible Modules & Accessories: 6815 – SLC expander for IDP/SK addressable devices 5815XL – SLC expander for SD addressable devices 5496 – 6 A NAC power expander with four outputs RPS-1000 – 6 A intelligent auxiliary power supply SK-NIC – Network interface card; copper or fiber with SK-FML/SK-FSL 5880 – LED I/O module 5883 – Ten-relay interface module 5865-3 / 5865-4 – LED annunciators 5824 – Serial or parallel printer interface module RBB – Remote battery box accessory cabinet Remote Annunciators (SBUS): RA-2000 – 4×40 LCD annunciator, red RA-2000GRAY – 4×40 LCD annunciator, gray Compatible Detectors & Devices (IDP / System Sensor): IDP-PHOTO-W, IDP-PHOTO-IV – Photoelectric smoke detector IDP-HEAT-W, IDP-HEAT-IV – Fixed-temperature heat detector IDP-PULL-DA – Dual action pull station IDP-MONITOR, IDP-MINIMON – Monitor modules IDP-CONTROL – Supervised control module IDP-RELAY – Addressable relay module IDP-ISO – Line isolator module Also supports System Sensor SK-series equivalents, or SD-series devices (Hochiki protocol). Protocols cannot be mixed on the same system.
