Notifier NFW-100XR Intelligent Addressable FACP w/ Communicator

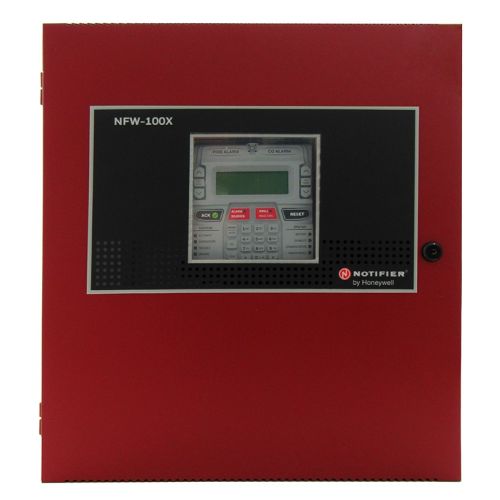

The Notifier NFW‑100XR is an intelligent addressable fire alarm control panel housed in a red cabinet that supports up to 198 addressable devices (99 detectors and 99 modules) using a single SLC loop. It is compatible with both FlashScan and CLIP communication protocols. A pre‑installed IPOTS‑COM communicator enables dual‑path reporting over IP and POTS. The panel includes four Class A/B NAC circuits, two programmable Form‑C relays, and one fixed trouble relay. Model Variants: NFW‑100XR = (Red Cabinet) Includes pre‑installed IPOTS‑COM communicator NFW‑100X = (Black Cabinet) Includes pre‑installed IPOTS‑COM communicator NFW‑100XI = (Black Cabinet) Does not include Communicator Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 198 addressable devices (99 detectors + 99 modules) Protocol: FlashScan and CLIP Power Input: 120/240 VAC auto‑sensing, 50/60 Hz, 3.25 A NAC Circuits: 4 Class A/B, 250 mA regulated per circuit (2.5 A for special applications) System Output: 2.7 A total shared across NACs and ANN‑BUS Battery Support: 7–18 AH (cabinet holds up to two 18 AH batteries) Dialer/Communicator: IPOTS‑COM (included) Relays: Two programmable Form‑C relays and one fixed trouble relay Compatible Modules & Accessories: Battery Chargers – CHG‑75, CHG‑120 Annunciators – N‑ANN‑80, N‑ANN‑100, N‑ANN‑LED, N‑ANN‑LED‑R (Red) Additional Modules – N‑ANN‑RLY, 4XTM Compatible Detectors & Devices: Photoelectric Smoke – FSP‑951 (FlashScan), FSP‑951‑IV (FlashScan and CLIP) Photoelectric Smoke w/ Thermal – FSP‑951T (FlashScan), FSP‑951T‑IV (FlashScan and CLIP) Photoelectric Smoke w/ Remote Test – FSP‑951R (FlashScan), FSP‑951R‑IV (FlashScan and CLIP) Thermal Sensors – FST‑951 (FlashScan), FST‑951‑IV (FlashScan and CLIP) Control Modules – FCM‑1, NC‑100 (FireWarden only) Relay Modules – FRM‑1, NC‑100R (FireWarden only) Addressable Manual Pull Stations – NBG‑12LX (FlashScan and CLIP), NOT‑BG12LX (FireWarden only)
