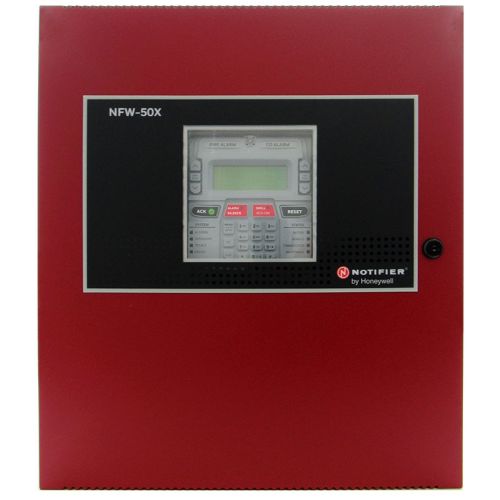

Notifier NFW-50XR Fire Alarm Control Panel

The Notifier NFW-50XR is an intelligent addressable fire alarm control panel that supports up to 50 addressable devices, including detectors and modules, using a single SLC loop. It is compatible with both FlashScan and CLIP communication protocols. A pre-installed IPOTS-COM communicator enables dual-path reporting over IP and POTS. The panel includes two Class A/B NAC circuits, two programmable Form-C relays, and one fixed trouble relay. The NFW-50XR is housed in a red cabinet. The NFW-50XR is a direct replacement for the NFW-50 fire alarm control panel. Model Variants: NFW-50X = (Black Cabinet) Includes pre-installed IPOTS-COM communicator NFW-50XR = (Red Cabinet) Includes pre-installed IPOTS-COM communicator Key Specifications: Type: Intelligent Addressable FACP Device Capacity: 50 addressable devices (detectors and modules combined) Protocol: FlashScan and CLIP Power Input: 120/240 VAC auto-sensing, 50/60 Hz, 3.25A NAC Circuits: 2 Class A/B, 250mA regulated per circuit (2.5A for special applications) System Output: 2.7A total shared across NACs and ANN-BUS Battery Support: 7–18AH (cabinet holds up to two 18AH batteries) Dialer/Communicator: IPOTS-COM (included) Relays: Two programmable Form-C relays and one fixed trouble relay Compatible Modules & Accessories: Battery Chargers – CHG-75, CHG-120 Annunciators – N-ANN-80, N-ANN-100, N-ANN-LED, N-ANN-LED-R (Red) Additional Modules – N-ANN-RLY, 4XTM Compatible Detectors & Devices: Photoelectric Smoke – FSP-951 (FlashScan), FSP-951-IV (FlashScan and CLIP) Photoelectric Smoke w/ Thermal – FSP-951T (FlashScan), FSP-951T-IV (FlashScan and CLIP) Photoelectric Smoke w/ Remote Test – FSP-951R (FlashScan), FSP-951R-IV (FlashScan and CLIP) Thermal Sensors – FST-951 (FlashScan), FST-951-IV (FlashScan and CLIP) Control Modules – FCM-1, NC-100 (FireWarden only) Relay Modules – FRM-1, NC-100R (FireWarden only) Addressable Manual Pull Stations – NBG-12LX (FlashScan and CLIP), NOT-BG12LX (FireWarden only)
