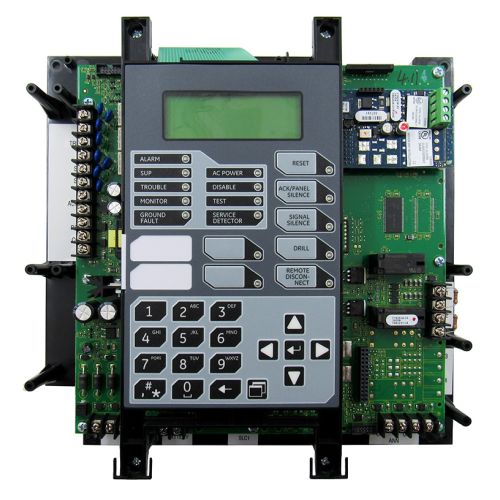

Edwards EST IO64-RE (Replacement Electronics Assembly, Main Board)

The Edwards EST IO64-RE is the replacement electronics assembly for IO64-series fire-alarm control panels. It replaces the main control board and restores native capacity of one Class B or Class A Signature loop supporting up to 64 addressable devices, along with two Class B notification-appliance circuits rated up to 2.5 A each for system signaling. When installed in the existing cabinet with the panel’s power supply and display assembly, the board retains Genesis strobe synchronization with horn-silence capability, selectable Temporal 3 and Temporal 4 coding, two programmable front-panel switches with LEDs, and Form C alarm and trouble relays. Communicator not included; optional SA-DACT provides Contact ID reporting. Model Variants: IO64G – Gray door, no dialer IO64GD – Gray door, with dialer IO64R – Red door, no dialer IO64RD – Red door, with dialer IO64-RE – Replacement electronics assembly (main board) Key Specifications: Type: Replacement electronics assembly (main board) for IO64 FACP Compatible Panels: IO64G, IO64GD, IO64R, IO64RD Device Capacity: 64 addresses onboard SLC Loops: 1 Class B or Class A Signature loop NAC Circuits: 2 Class B, up to 2.5 A per circuit Auxiliary Power: 24 V DC output for accessories Primary Power: Uses existing panel supply Battery Support: Uses existing cabinet and standby batteries Communicator: Not included; optional SA-DACT provides Contact ID reporting Annunciators: Supports serial annunciators and D16L-iO LED zone expanders Compatible Modules & Accessories: SA-DACT – Dual-line dialer/modem, Contact ID, replacement module SA-232 – RS-232 interface card for printer/PC programming SA-ETH – 10/100 Base-T Ethernet card for remote diagnostics and reports iO-SDC1 – 250-point single-loop controller card for service replacement on IO64 RZI16-2 – Remote zone interface, 16 IDCs plus 2 NACs D16L-iO-1 – 16-zone LED display expander (zones 1–16) D16L-iO-2 – 16-zone LED display expander (zones 17–32) CTM – City-tie module BC-1R – 24 Ah battery cabinet (red) MFC-A – Multifunction accessory cabinet Compatible Detectors & Devices: SIGA-OSD – Optical smoke detector SIGA-PHD – Photoelectric smoke + heat detector SIGA-HFD – Fixed-temperature heat detector SIGA-HRD – Rate-of-rise + fixed-temperature heat detector SIGA-SB – Standard detector base SIGA-IB – Isolator detector base SIGA-RB – Relay detector base SIGA-AB4G – Sounder detector base SIGA-MM1 – Monitor module SIGA-CR – Relay control module SIGA-CC1 – Control module
